Changchai Gruop 3inch diesel water pump is a purpose-designed surface-mounted pump designed for water extraction from a range of demanding environments thanks largely to a heavy-duty EURO V engine and a robust frame design, volute housing, and cast iron components.
Perfect for domestic and commercial-grade applications.
KT150C
Changchai Group Kaito
KT150C
Product Description
When considering irrigation pumps for lawns, gardens, and fields, several factors can affect pump performance. The first is the power of the pump controlled by the engine. A larger engine with higher horsepower means more water volume and pressure. The second factor is the size of the impeller, a larger impeller will produce higher pressure.

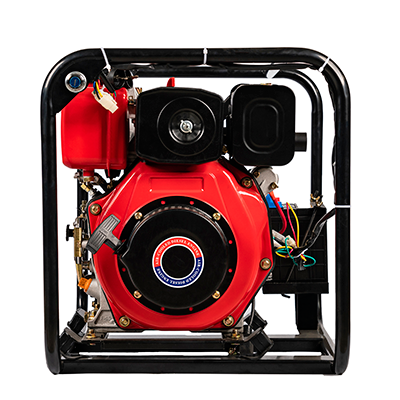

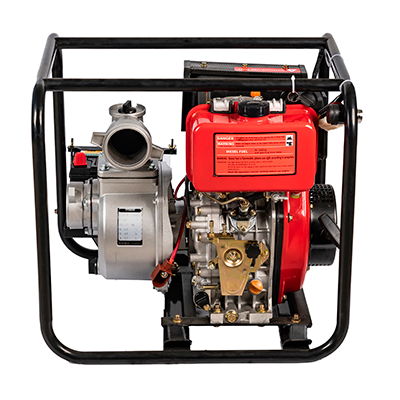

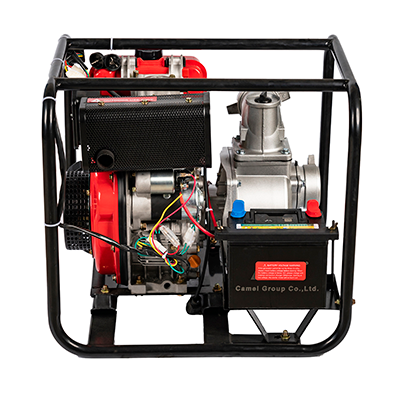

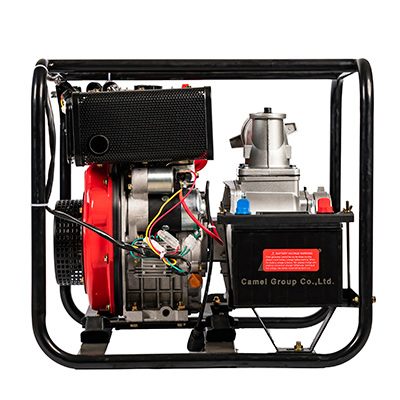

This 6 inch diesel water pump has a high-performance, large-diameter enclosed impeller design and an easy-to-use starting system for fast starting. We install all water pump components in a sturdy steel roll cage and provide a practical pressure gauge. The engine is a reliable Changchai Kaito 192F recoil start engine with a low-fuel safety shutdown system.
A 6inch diesel water pump is a heavy-duty, versatile machine designed for moving large volumes of water efficiently. These pumps are commonly used in agriculture, construction, mining, and flood control. Here's a detailed look at their features, benefits, and potential applications:
| del | Diesel Water Pump Series | |||||
| KT50C | KT80C | KT100C | KT150C | KT50HC | KT80HC | |
| In/Out Dia | 50(2 inch) | 80(3 inch) | 100(4 inch) | 150(6 inch) | 50(2 inch) | 80(3 inch) |
| Discharge Capacity(m³/h) | 28±10% | 50±10% | 80±10% | 135±10% | 24±10% | 36±10% |
| Life Head(m) | 30 | 30 | 25 | 20 | 80 | 60 |
| Suction Head(m) | 8 | 8 | 8 | 8 | 8 | 8 |
| Priming Time(s/m) | 120 | 120 | 180 | 180 | 180 | 200 |
| Engine Type | 173F | 178F | 186FA | 192F | 178F | 186FA |
| Starting Systerm | Rocoil / Electric start | Electric start | Recoil /Electric start | Recoil/Electric start | ||
| Net Weight | 37/48 | 47/58 | 68/85 | 140 | 58/65 | 83/90 |
| Gross Weight(KG) | 42/53 | 52/63 | 73/90 | 150 | 63/70 | 88/95 |
Durability: Diesel engines are built for rigorous, prolonged use.
Powerful Performance: Handles both clean and dirty water with ease, including water with small debris or silt.
Long Lifespan: Well-maintained diesel pumps can last for years, making them a cost-effective investment.
Fuel Efficiency: Diesel engines are more fuel-efficient for long-duration tasks.
Independence from Power Supply: No need for electrical power, making them suitable for remote or off-grid locations.
Higher Torque: Diesel engines deliver more torque, allowing them to handle heavier pumping loads.
Flow Rate and Head: Match the pump's capacity to your specific water-moving needs.
Fuel Tank Capacity: Larger tanks ensure longer runtime without frequent refueling.
Build Material: Choose a pump designed to handle the type of water or slurry you'll be moving.
Noise Level: Diesel engines can be noisy; consider sound-attenuated models for residential or urban areas.
Maintenance Requirements: Check for user-friendly maintenance options and availability of spare parts.
Flood Control: Quickly removes water from flooded areas during emergencies.
Irrigation: Used in agriculture to move large volumes of water efficiently to fields.
Dewatering: Ideal for draining water from construction sites, mining pits, and trenches.
Municipal Use: Assists in draining wastewater, stormwater, or during maintenance of municipal systems.
Industrial Applications: Handles water transfer needs in industrial settings, including cooling and processing.
