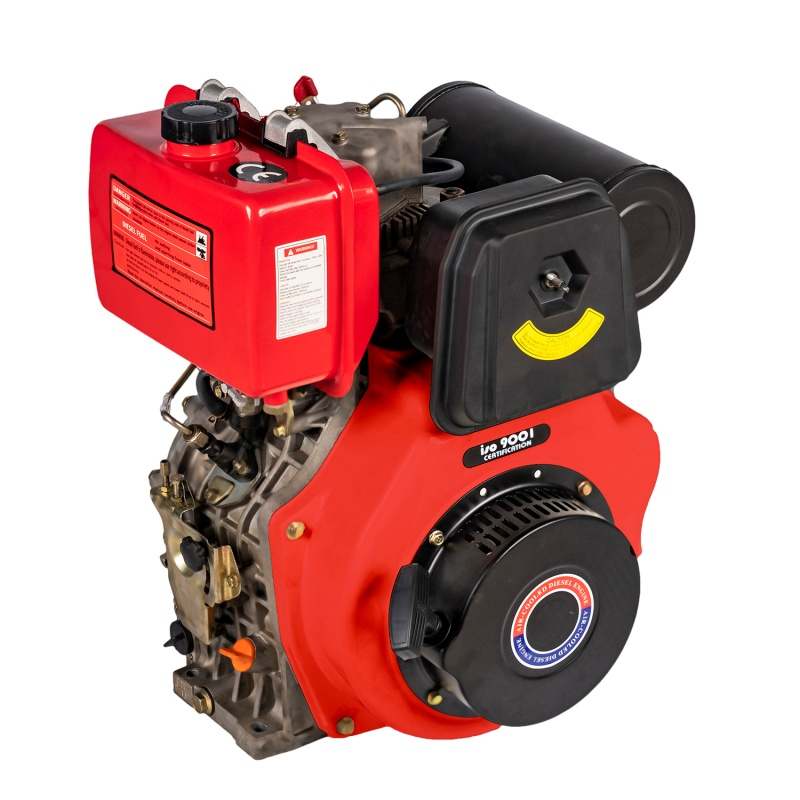

Overview-air cooled diesel 1100f diesel engine
Brand: ChangChai Group Kaito Power
Power: 4HP-22HP
Output shaft: Keyway, Thread, Taper Single cylinder engine
Engine speed: 3000/3600 rpm Manual start/electric start CE certificate, Euro V Certificate
1 cylinder diesel engine, which is classified by the number of cylinders and has only one cylinder, is popular with many users because of its lightweight, small volume, simple layout, and convenient repair, and is widely used in micro-tiller matching power. 1cylinder diesel engine has a two-stroke diesel engine and a four-stroke diesel engine, both of them have basically the same mechanism, the main difference is in the valve structure.
Product Main Fatures:(1100f diesel engine)
Some points for attention in very small diesel engine
As a common engine, the very small diesel engineis used in many places. Some small businesses need long-term use of diesel engines, while others need long-term use of diesel engines. To save them, we need to know the following:
1. Choose a good place to keep it. When farmers keep a very small diesel engine, they put it under the eaves on purpose, regardless of natural weather conditions, wind direction, or site drainage. But the constant dripping of water from the eaves depresses the ground beneath the eaves, making it difficult to drain water and prone to rusting in the very small diesel engine.
2. We should take measures to prevent wind and rain. If diesel engines are kept in the open air, dust or rain can easily get into the very small diesel engine through the air filter, exhaust pipes, and so on.

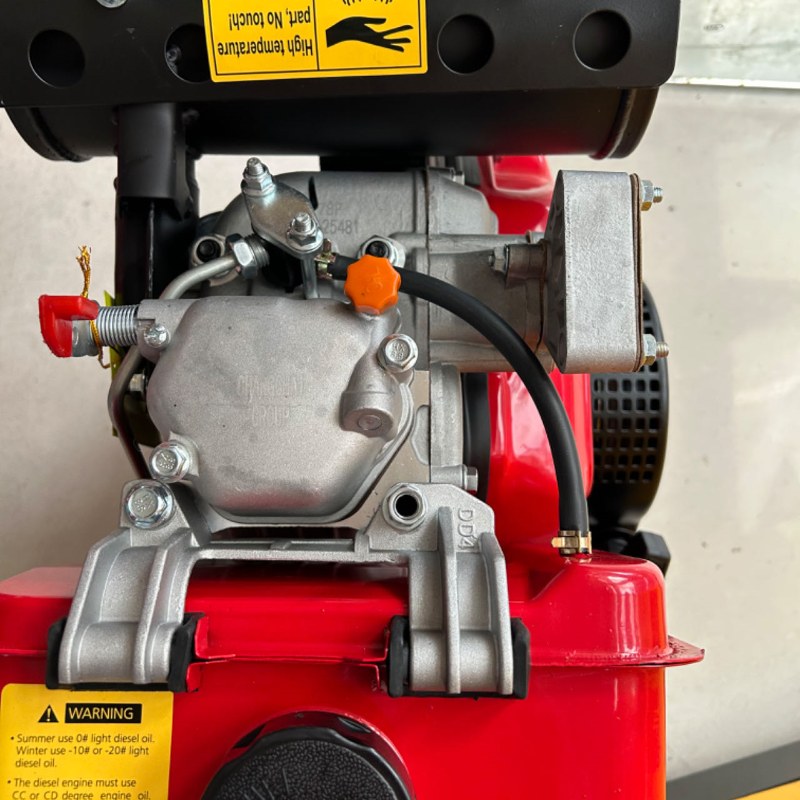

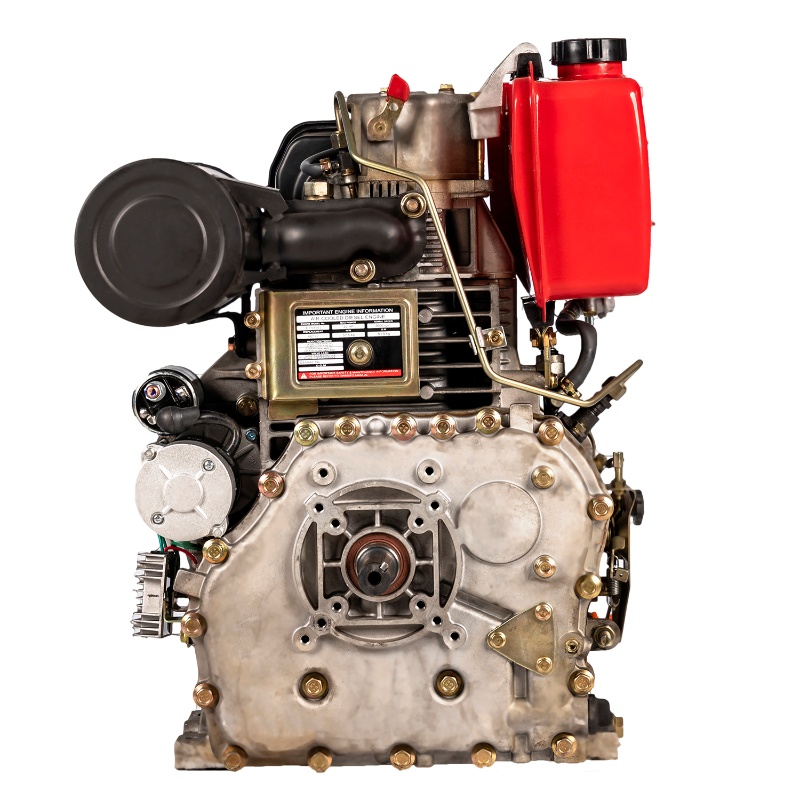

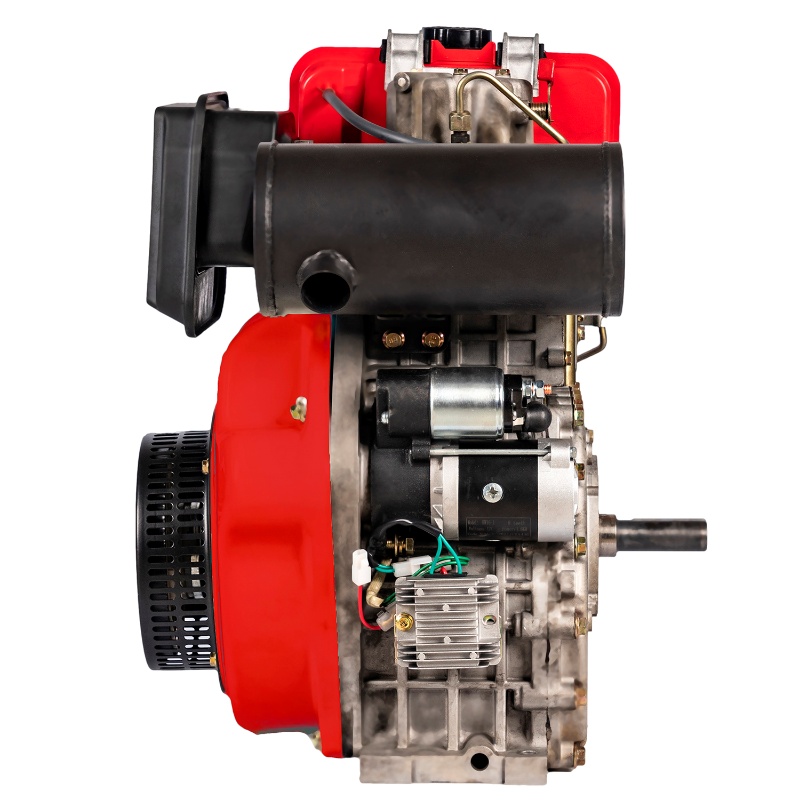

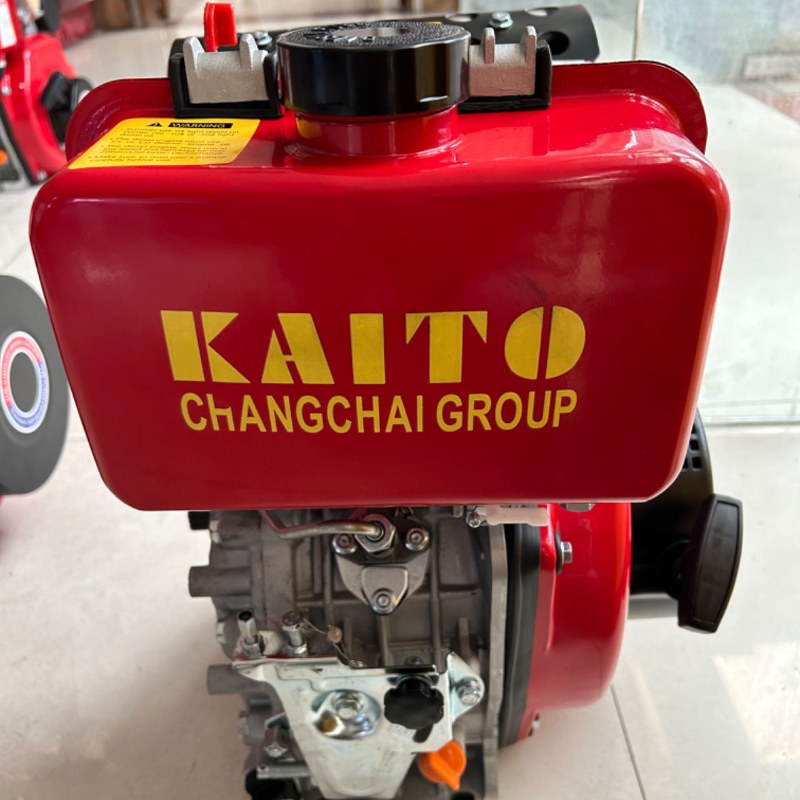

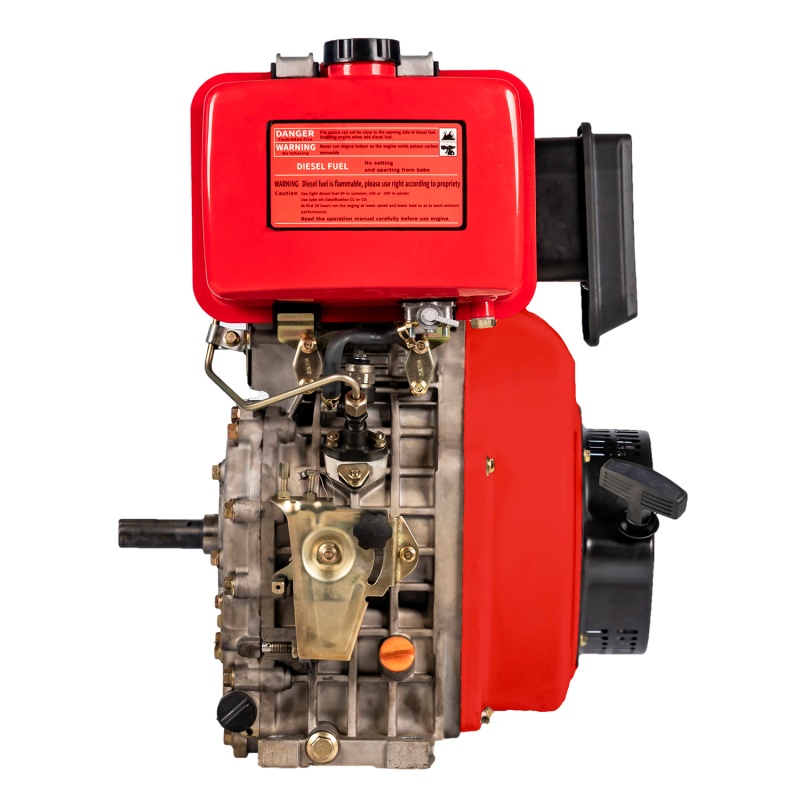

Details Photos -1100f diesel engine
Key Features of the 1100f Diesel Engine:
Displacement: Typically, the 1100F diesel engine has a displacement of about 498cc, though this can vary slightly depending on the manufacturer.
Power Output: our 1100f diesel engine It generally delivers around 10 to 12 horsepower (HP), making it suitable for smaller-scale operations.
Bore x Stroke: our 1100f diesel engine usually has a bore of 92 mm and a stroke of 75 mm.
Fuel System: our 1100f diesel engine uses a direct injection fuel system, which helps improve efficiency and reduces emissions compared to carburetor-based engines.
Cooling System: our 1100f diesel engine features an air-cooled system, which is sufficient for the small size and output of the engine, minimizing the need for a complex liquid cooling system.
Fuel Type: As a diesel engine, our 1100f diesel engine ,it uses diesel fuel, which is more fuel-efficient than gasoline, especially for heavy-duty tasks.
Start Mechanism: our 1100f diesel engine can come with a manual start (recoil pull-start) or electric start, depending on the specific model and application.
Compression Ratio: our 1100f diesel engine typically has a compression ratio around 19:1, which is common in diesel engines for better fuel efficiency and power output.
Specifications-1100f diesel engine
The 1100F diesel engine is a popular, small single-cylinder, air-cooled engine commonly used in various machines, including generators, water pumps, agricultural equipment, and small vehicles. It's known for its efficiency, durability, and relatively simple maintenance. Here are details specifications for 1100f diesel engine.
Model | 1100f diesel engine |
Type | Single cylinder,vertical,4-stroke,
air-cooled,direct injection |
Bore*Stroke(mm) | 100*85 |
Displacement(cc) | 667 |
Compression Ratio | 20:1 |
Rated Speed(rpm) | 3000 |
Rated Power(kw) | 10.5 |
Fuel Tank Capacity(L) | 5.5 |
Fuel Consumption(g/kw.h) | ≤290 |
Lube Oil Capacity | 2 |
Starting Fashion | Elec.starter |
Output Shaft | Crankshaft/Camshaft |
Fuel Trademark | 0#(summer),-10#(winter)diesel |
Oil Trademark | CD grade or SAE10W-30 15W-40 |
Net Weight(kg) | 60
|
|
Overall Dimension L*W*H(mm) | 550*500*625 |
Produce Line -1100f diesel engine
Pros of the 1100F Diesel Engine:
Advantages:
Fuel Efficiency: Diesel engines, including the 1100f diesel engine, are known for being more fuel-efficient than their gasoline counterparts, which means longer operation times on a single tank of fuel.
Durability: 1100f Diesel engines generally have a longer lifespan compared to gasoline engines, making the 1100F a long-term investment for users who require consistent performance over time.
Low Maintenance: 1100f diesel engines are relatively simple and easy to maintain, with fewer parts subject to wear compared to other engine types.

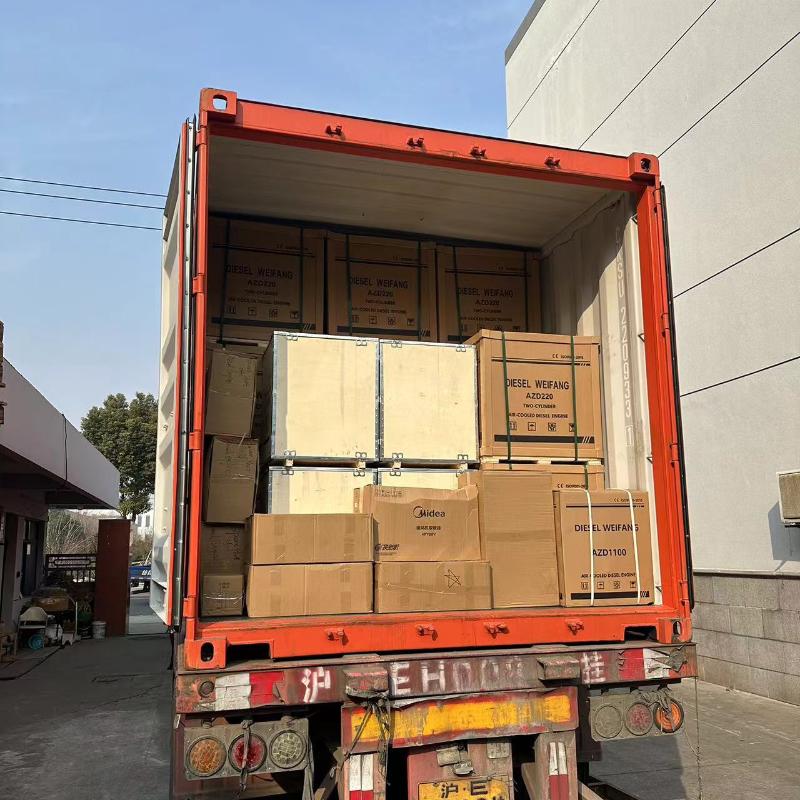

Package and delivery-1100f diesel engine
our 1100f diesel engine Usually packaged in cardboard boxes with wooden pallets，so , even if it's just sample order , the package is very safe .we can also do OEM orders for customers , carton with customers' logo on it .
When not in use for a long time, the machine should be sealed. The very small diesel engine is sealed as follows.
(1) exhaust engine oil, diesel oil, and cooling water.
(2) clean and install the crankcase and timing gearbox with diesel oil.
(3) maintain air filters as needed.
(4) lubricate all moving surfaces. Take care to dehydrate the clean oil (boil the oil until the foam is completely gone), cool, and pour it into the oil pan, then turn the crankshaft for 2-3 minutes.
(5) sealed combustion chamber. After the dehydration of 0.3 Kg of clean oil from the intake pipe into the cylinder, the flywheel is under decompression rotation more than 10 times, so that the intake and exhaust valves, pistons,cylinders, and piston rings are coated with lubricating oil, and finally, the piston reached TDC, close the intake and exhaust valves. After the seal is sealed, install the air filter.
Company Introduction-1100f diesel engine
Changzhou Changchai Group Kaito Electricity Machinery Co.,Ltd ,The company is the first to abain the second generation of single-cylinder air cooled diesel engine production license enterprises in 2004. We focus, Concentrate, Specialize in air-cooled diesel power and supporting units for 20 years, and achieved excellent results. Now the annual production capacity of 100,000 units of diesel engines, supporting diesel generators of 30,000 units, the annual export volume of the forefront of the industry, the company has got both ISO9001 International Quality Management Systerm Certificate, CE certificate.
our 186f engine With Changchai Group Kaito power brand, strong technology and high-quality personnel, continuous innovation and perfect management systerm, the company can provide first-class products and high-end services and reputation in domestic and abroad. Product are exported to the United States, Europe, South America, Africa, Australia, the Middle East and Southeast Asia in various regions of the world.
Common Applications-1100f diesel engine
Portable generators
Water pumps
Pressure washers
Go-karts and small utility vehicles
Agricultural equipment (like tillers, lawnmowers, etc.)
Our Canton Fair -1100f deisel engine
we attend Canton Fair every year , and already worked with a lot cusomters which from Dubai,Malaysia, Philippines, Ghana.....the business is growing fast ,looking forward to join with us.
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. our 186f diesel engine ,Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
FAQ-1100f diesel engine
1.Q:How about guarantee?
A: within 1year after goods is discharged in the destination. We will supply the consumables if it broken under normal using. For example, fuel cock,spark plug,recoil starter,etc
2.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
3.Q:What is you deliver time ?
A: Within 15-20days after got your T/T deposit.
4.Q: What certificate do you have for the engine diesel generator set ?
A: There are ISO 9001:2008, CE etc.
5.Q: If I want to be your products distributor in our country, what is your distribution policy?
A: Kaito power welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
